Use of the Bodystat 1500MDD

The Bodystat MDD works the same way as the Bodystat 1500, using 4 electrodes, the subject is lying down, and the measurement results are available within seconds.

The MDD comes with body composition and hydration software for a full analysis of the subjects cellular health, nutrition status and overall fitness and health.

Practitioners or clinicians are therefore able to give accurate assessment of a patient’s health and whether nutritional therapy or a wellness program is working in the correct way.

The MDD gives additional insight into what is happening inside the body, in order for the practitioner to make the correct judgement on therapy, drugs and advice.

It works by passing a safe battery generated signal through the body and measuring the impedance at two frequencies of 5 kHz and 50 kHz. Once the test has been performed the Display Options are shown within five seconds. A complete body composition analysis is displayed comprising Body Fat, Lean Body Mass, Dry Lean Mass, Total Body Water and Optimal Ranges. Metabolic Rates, Waist/Hip Ratio, BMI, BFMI, FFMI, Intra- and Extra-Cellular Water, Phase Angle and a Wellness MarkerTM (Impedance Ratio) are also displayed on the Colour touch screen

DOWNLOAD BROCHURE: ENGLISH

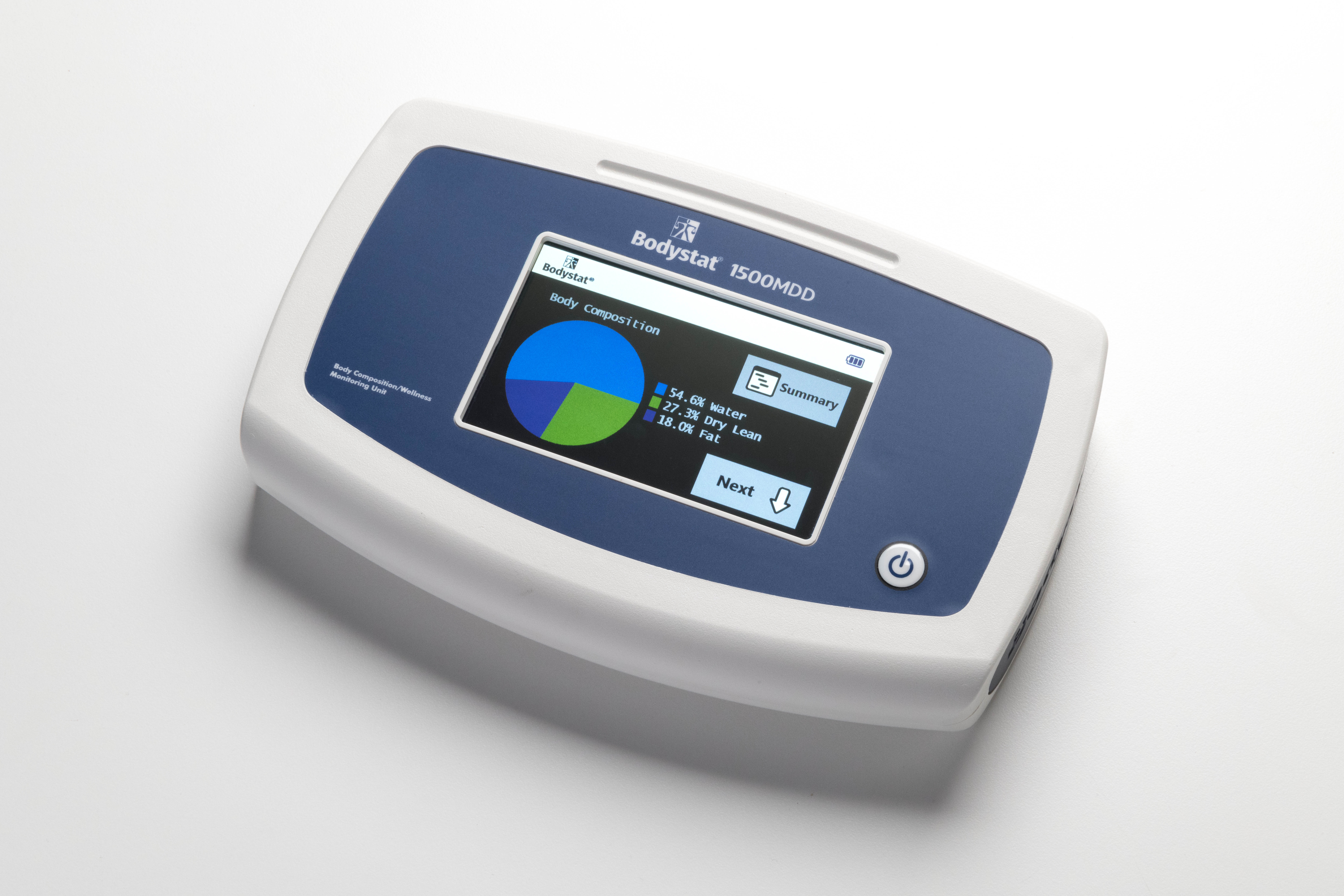

Bodystat 1500MDD

The Bodystat 1500MDD is the advanced version of the Bodystat 1500 with
added functions such as cellular health and nutritional status
monitoring. It is the machine of choice for Dietitians and
Nutritionists.


    SOFTWARE

    MEASUREMENTS:

    • Body Fat % and Fat Weight
    • Lean Mass % and Lean Mass
    • Body Water % and Body Water in litres
    • Plus Normal Levels of above
    • Extra-Cellular Water % and Volume
    • Intra-Cellular Water % and Volume
    • Dry Lean Mass
    • Basal Metabolic Rate (BMR)
    • BMR/Body Weight*
    • Average Daily Calorie Requirement*
    • Body Mass Index – Plus Normal Range
    • Body Fat Mass Index (BFMI)*
    • Fat-Free Mass Index (FFMI)*
    • Wellness MarkerTM (Impedance Ratio)
    • Impedance Values at 5 kHz & 50 kHz
    • Resistance 50 kHz
    • Reactance 50 kHz
    • Phase Angle measured at 50 kHz

    (Bodystat Ltd is unique in that Phase Angle is a direct measurement, and not a calculation)

    *Estimated

    Bodystat 1500MDD uses the Bodystat 0515 electrodes (four per measurement)

    RESEARCH

    PRODUCT FEATURES


    Features of all Bodystat products

    • Lightweight, hand-held portable device
    • Four electrode (tetra-polar) measurements, patient/client lying down ideally
    • Colour touch screen display to view data
    • Non-invasive, safe to use
    • No maintenance required
    • No specialist skills or training required
    • Results available in seconds on display screen
    • No computer requirement to view data – but optional Windows software available to plot results available in multi-language
    • Subject data recall for up to 100 tests
    • Accepts metric or imperial units
    • Calibrator for self-testing hardware
    • All results show recommended ranges
    • Low battery alarm system
    • 12 month parts and labour warranty on a return to factory basis
    • Quality Clearance: CE 1639 Medical Devices Directive and FDA
    • ISO 13485 company accreditation

    BENEFITS

    • Proven revenue generator for fitness centres and personal trainers
    • Increased gym member usage and referrals
    • Medically proven whole body composition analysis and core cellular health measurement
    • Additional insightful information to ‘Body Mass Index’ (BMI)
    • Essential motivational tool especially for weight loss programs
    • Accurate tracking of changes in Body Fat, Lean Muscle Mass & Hydration
    • Fast, reliable, cost-effective, reproducible results
    • Trend graphs (with additional software programs) available for quick evaluation for remedial action
    • Cardiac Risk Analysis (included in software)
    • Unique Wellness MarkerTM (Impedance Ratio) overall health assessment irrespective of age, weight, population group (available in the Bodystat 1500MDD device only)
    • Unique Prediction MarkerTM (Impedance Ratio) to assess fluid shifts intra- and extracellularly, including use as an additional marker for outcome, without the requirement for weight, height, age or gender (available in the Quadscan 4000 and Multiscan 5000 devices only)
    • Portability allows use in many different locations
    • Non-invasive assessment of hydration, nutrition status and Lean Muscle Mass
    • Track potential risk of lymphoedema in post-operative patients (Quadscan 4000, Multiscan 5000)
    • Determine if weight gain is due to increase in Lean Body Mass or fluid retention
    • Test can be performed at the bedside, versus other more cumbersome and expensive methods
    • Quick corrective action can be taken to improve the health of the patient
    • Ease of use allows for regular monitoring of status as frequently as required (minutes, hours, days, etc)
    • Number of measurement parameters can be selected to meet specific needs
    • Automatic selection of equations for Children or Adults, depending on age entered (not available in the Bodystat 1500 hardware)
    • Exact time of measurements recorded by Real Time Clock (not available in the Bodystat 1500 hardware)
    • Measurement takes 1 second with instant results on colour touch screen
