Features, Benefits & Uses of the Bodystat Multiscan 5000

The latest-generation Bodystat Multiscan 5000 combines advanced Bioelectrical Impedance Spectroscopy (BIS) with enhanced measurement performance, improved connectivity and practical features designed to support clinical assessment and research.

Advanced Measurement Technology

  • 50 frequencies in just 2 seconds: Rapid BIS measurements across a wide frequency range, reducing the opportunity for patient movement during measurement.
  • Enhanced measurement accuracy and reproducibility: Improved control of stray capacitance supports stable impedance and Phase Angle measurements, including at higher frequencies.
  • Optimised Cole-Cole analysis: Improved modelling supports reliable interpretation of impedance data while reducing the need for manual adjustments associated with the Hook Effect.
  • Improved electrode lead wires: Durable, low-capacitance leads support consistent measurement performance, particularly at higher frequencies.
  • Bioelectrical Impedance Vector Analysis (BIVA): Visual representation of impedance parameters to support assessment of hydration and cellular status.

Designed for Clinical Convenience

  • Lightweight and portable: Suitable for use across a range of clinical and research environments.
  • Bluetooth connectivity: Enables wireless transfer of measurement data to compatible software.
  • Extended battery performance: Up to 16 hours of battery life to support use throughout the clinical day.
  • Expanded onboard storage: Stores up to 1,000 measurements for greater flexibility when working across multiple patients or locations.
  • Wireless charging: Convenient charging without a physical charging connector.
  • Remote software support: Enables version updates and system diagnostics.
  • HL7 integration: Supports integration with compatible clinical information systems.

Clinical Applications

The Multiscan 5000 provides body composition, hydration and nutritional parameters that can support assessment and monitoring across a range of clinical settings.

  • Nutritional assessment: Monitoring body composition, Body Cell Mass and Phase Angle as additional indicators of nutritional and cellular status.
  • Sarcopenia: Monitoring changes in skeletal muscle mass, including Appendicular Skeletal Muscle Mass (ASMM), to support muscle health assessment and longitudinal monitoring.
  • Cachexia: Monitoring body composition changes in patients with cancer, heart failure and other chronic conditions.
  • Renal dialysis: Assessing hydration status and estimated fluid overload before and after dialysis.*
  • Lymphoedema: Supporting the assessment and monitoring of changes in fluid distribution.
  • Critical care: Providing additional insight into body composition and fluid status when changes in body weight alone may be difficult to interpret.

*NB: For a dialysis unit, the hydration status provided by the Bodystat
device provides an indication only for setting the target weight through
the overhydration (OHY) value. However, a target weight cannot be set simply on the basis of the Bodystat data. Information on residual renal function, daily weight gains and symptoms on dialysis must also be considered in the course of normal clinical patient evaluation.

DOWNLOAD BROCHURE: ENGLISH

Alternatively, review the Bodystat resources page for additional information and brochures on the Multiscan including a step by step video.

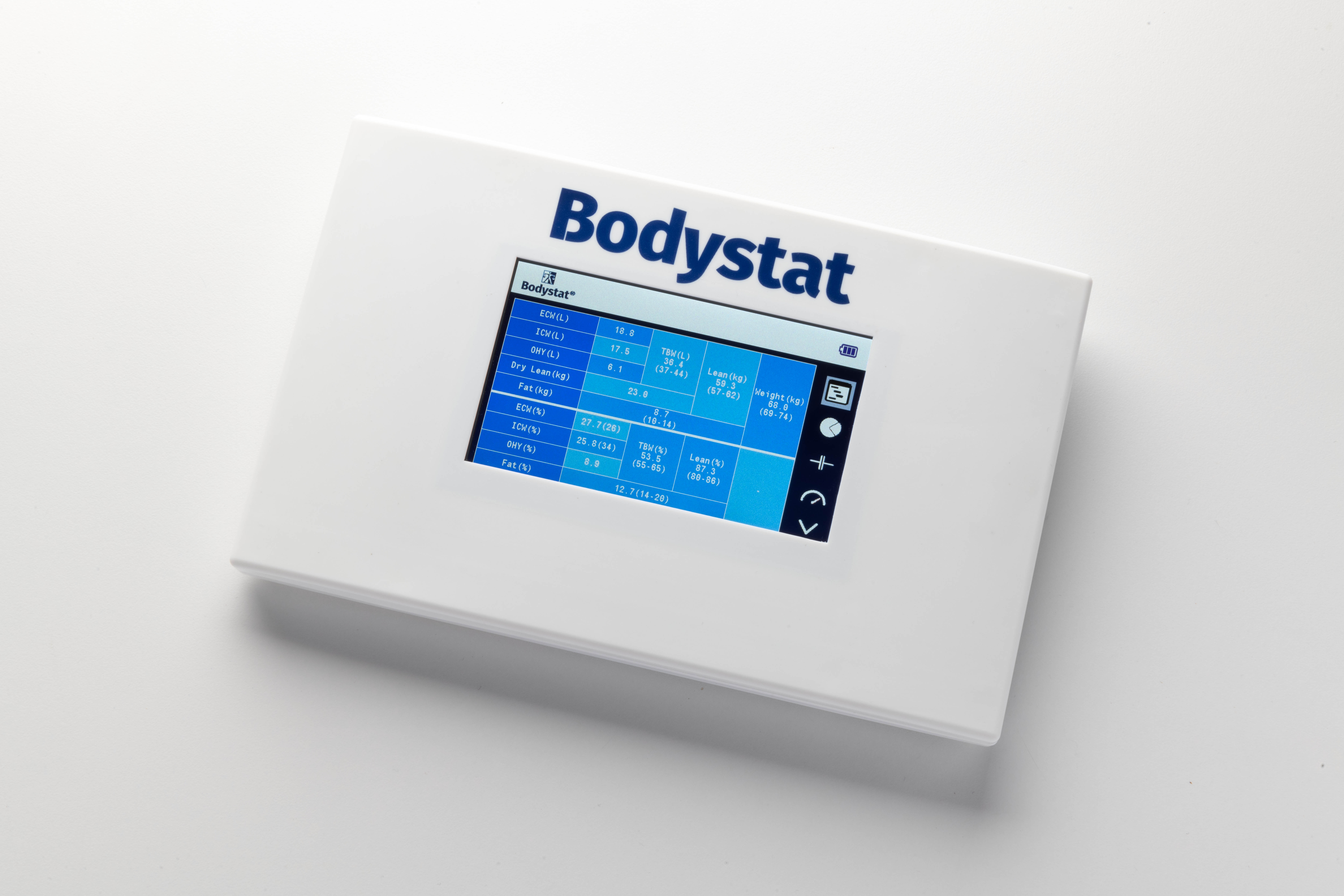

Bodystat Multiscan 5000

The Multiscan is a spectroscopy (BIS) device to measure the Body
Composition, Hydration & Volume of Fluid Overload in litres,
particularly for Dialysis, Cachexia, Sarcopenia and Lymphoedema.


    SOFTWARE RESEARCH

    Measurements & Analysis

    The latest-generation Bodystat Multiscan 5000 provides comprehensive body composition, hydration and bioelectrical measurements using 50-frequency Bioelectrical Impedance Spectroscopy (BIS).

    Body Composition:

    • Body Fat Percentage (%) and Fat Mass (kg), with reference ranges
    • Lean Mass (%) and Lean Weight (kg), with reference ranges
    • Dry Lean Weight
    • Skeletal Muscle Mass (SMM)*
    • Body Cell Mass (BCM)*

    Hydration & Fluid Balance:

    • Total Body Water (TBW), expressed as a percentage and in litres, with reference ranges
    • Extracellular Water (ECW)*, expressed as a percentage and in litres, with reference ranges
    • Intracellular Water (ICW)*, expressed as a percentage and in litres, with reference ranges
    • Overhydration (OHY)*, expressed in litres

    Nutritional & Metabolic Parameters:

    • Nutrition Index
    • Basal Metabolic Rate (BMR)*
    • BMR relative to Body Weight*
    • Average Daily Calorie Requirement*

    Body Composition Indices:

    • Body Mass Index (BMI), with reference ranges
    • Body Fat Mass Index (BFMI), with reference ranges
    • Fat-Free Mass Index (FFMI), with reference ranges
    • Waist-to-Hip Ratio (WHR)
    • Prediction Marker™

    Advanced Bioimpedance Analysis:

    • Impedance, Resistance, Reactance and Phase Angle values across 50 frequencies, from 5 kHz to 1,000 kHz
    • Bioelectrical Impedance Vector Analysis (BIVA), including population reference selection*
    • Cole-Cole Plot
    • Cell Membrane Capacitance*
    • Characteristic Frequency*

    *Estimated parameters, as identified in the product specifications.

    Electrodes: The Multiscan 5000 uses Bodystat 0515 carbon-coated electrodes, with four electrodes required per measurement.

    For further information about the Multiscan 5000, its measurement parameters or clinical applications, please contact the Bodystat team.


    CONTACT US

    PRODUCT FEATURES


    Features of all Bodystat products

    • Lightweight, hand-held portable device
    • Four electrode (tetra-polar) measurements, patient/client lying down ideally
    • Colour touch screen display to view data
    • Non-invasive, safe to use
    • No maintenance required
    • No specialist skills or training required
    • Results available in seconds on display screen
    • No computer requirement to view data – but optional Windows software available to plot results available in multi-language
    • Subject data recall for up to 100 tests
    • Accepts metric or imperial units
    • Calibrator for self-testing hardware
    • All results show recommended ranges
    • Low battery alarm system
    • 12 month parts and labour warranty on a return to factory basis
    • Quality Clearance: CE 1639 Medical Devices Directive and FDA
    • ISO 13485 company accreditation

    BENEFITS

    • Proven revenue generator for fitness centres and personal trainers
    • Increased gym member usage and referrals
    • Medically proven whole body composition analysis and core cellular health measurement
    • Additional insightful information to ‘Body Mass Index’ (BMI)
    • Essential motivational tool especially for weight loss programs
    • Accurate tracking of changes in Body Fat, Lean Muscle Mass & Hydration
    • Fast, reliable, cost-effective, reproducible results
    • Trend graphs (with additional software programs) available for quick evaluation for remedial action
    • Cardiac Risk Analysis (included in software)
    • Unique Wellness MarkerTM (Impedance Ratio) overall health assessment irrespective of age, weight, population group (available in the Bodystat 1500MDD device only)
    • Unique Prediction MarkerTM (Impedance Ratio) to assess fluid shifts intra- and extracellularly, including use as an additional marker for outcome, without the requirement for weight, height, age or gender (available in the Quadscan 4000 and Multiscan 5000 devices only)
    • Portability allows use in many different locations
    • Non-invasive assessment of hydration, nutrition status and Lean Muscle Mass
    • Track potential risk of lymphoedema in post-operative patients (Quadscan 4000, Multiscan 5000)
    • Determine if weight gain is due to increase in Lean Body Mass or fluid retention
    • Test can be performed at the bedside, versus other more cumbersome and expensive methods
    • Quick corrective action can be taken to improve the health of the patient
    • Ease of use allows for regular monitoring of status as frequently as required (minutes, hours, days, etc)
    • Number of measurement parameters can be selected to meet specific needs
    • Automatic selection of equations for Children or Adults, depending on age entered (not available in the Bodystat 1500 hardware)
    • Exact time of measurements recorded by Real Time Clock (not available in the Bodystat 1500 hardware)
    • Measurement takes 1 second with instant results on colour touch screen
